Nikon 10-Pin Connector
27-March-2009
Bertho Boman

Home

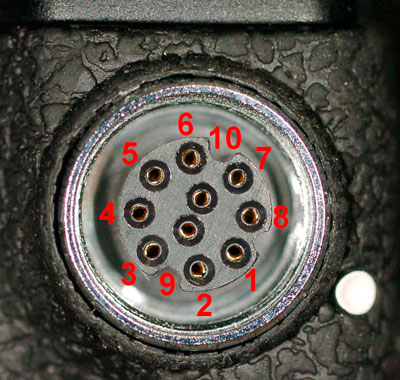

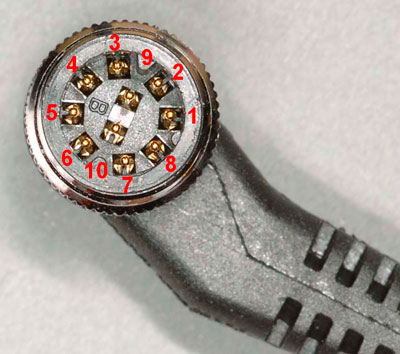

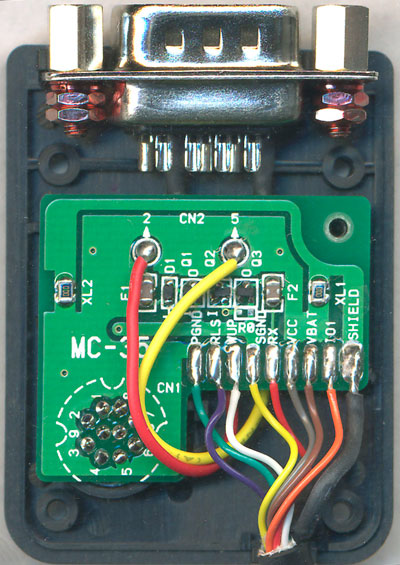

Here is some information on the Nikon 10-pin connector used on Nikon's high-end cameras. I measured the voltages on my D2X camera and I also disassembled the Nikon MC-35 adapter. The pin numbers are copied from the internal printing of the MC-35 and they also match the EIA color coding of the wires.

I measured the voltage on the pins during four conditions: 1: The camera turned off, 2: Sleeping, 3: Awake, 4: Focusing. Different cameras might not behave the same so I cannot comment on what other models do. Also note that the pin functions are not from Nikon's official definitions. Please let me know additional information or corrections so I can update this section.

Camera body
D2X

Connector
Connector

MC-35
MC-35



Test Results
#
Wire
Color
Function
Volt
Off
Volt
Sleep
Volt
Wake
Volt
Focus
Notes
1 Brown Vbat 5.98 5.98 5.98 7.78
2 Red Rx 0 3.87 4.32 4.32 Input data to camera
3 Orange I-O 0 0 4.62 4.62 ?
4 Yellow Sig Gnd 0 0 0 0 Common ground
5 Green Pwr Gnd 0 0 0 0 Flash bracket, Lens mount
6 Blue Tx 0 0 0 0 Output data from camera
7 Purple Relese 0 3.87 4.62 4.62
8 Gray Vcc 0 0 5.06 5.06 Regulated supply??
9 White Wakeup 0 3.87 4.32 0 1.5V while waking up
10 - - - - - -
